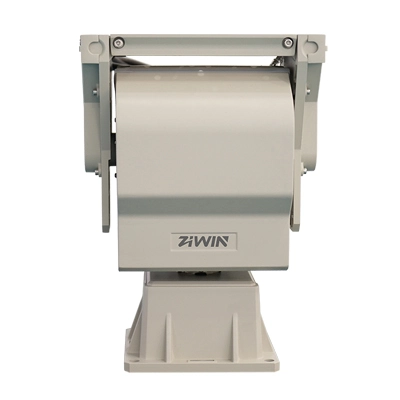

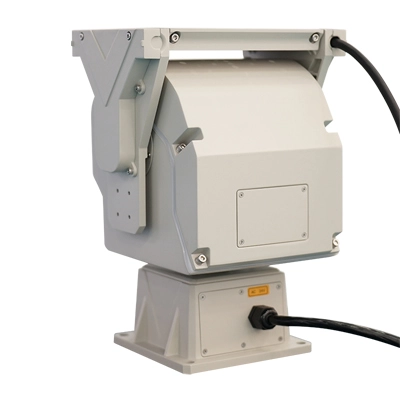

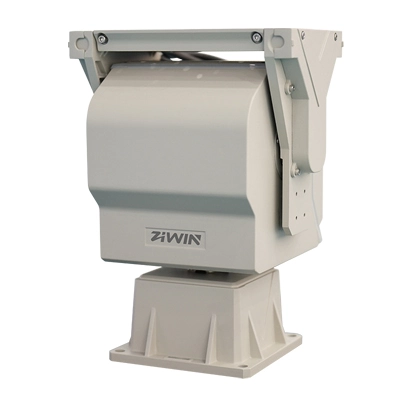

Medium duty pan tilt unit, indoor/outdoor use
High precision stepper motor, worm and gear drive transmission
Load capacity up to 15kg/33.07lb
High-strength aluminum alloy construction
Self-lock with memory after power failure, strong wind-resistance
Variable speed,pan: 0.1~60°/s;tilt:0.1~30°/s
360° continuous pan rotation, +40°~-75° tilt
Preset accuracy:±0.1°
Support position feedback and absolute position
RS485/RS422 pan tilt control with Pelco P/D protocol
Protection grade IP66
| Model | ZN-SPM20U |
| Max. Load Capacity | 15kg/33.07lb |
| Load Type | Top load |
| Transmission Mode | Worm gear transmission |
| Pan/Tilt Range | Pan: 0°~360°, Tilt: -75°~+40° |
| Pan Speed | 0.1°~60° |
| TiltSpeed | 0.1°~30° |
| Presets | 200 |
| Preset Accuracy | ±0.1° |
| PT Speed Adaptation | Support |
| Cruising Track | 1 |
| Auto Scan | 1 |
| Guard Location | Support with 1 preset or 1 cruising track or 1 auto scan |
| Lens Preset | Support |
| Lens Control | Continuously adjustable zoom, focus speed |
| Power-Off Memory | Support, recover to PT position, scan/preset/cruising track movement before power failure |
| Protocol | Pelco D/P |
| Baud Rate | 2400/4800/9600/19200 bps |
| Communication Interface | RS485 (Optional RS422) or RJ45 |
| Coordinate Feedback | Support angle query feedback/real-time feedback |
| Interface | |
| Standard | 10/100M Ethernet with RJ45 (4 wire, pass-through), AC 24V/DC 24V (2 wire), GND |
| Opention | RS485/RS422 |
| General | |
| Power Supply | AC24V±10% ,50/60Hz;DC24V±5%； |
| Power Consumption | ≤60W |
| Lighting Surge Protection | Power: 4000V (line to ground: 4000V, line to line: 2000V) Communication signal interface: 2000V (line to ground: 2000V, line to line: 1000V) |
| Working Temperature | -35°C~+65°C (-31°F~ +149°F) |
| Working Humidity | ＜90%RH |
| Protection Level | IP66 |
| Material | Aluminium Alloy |

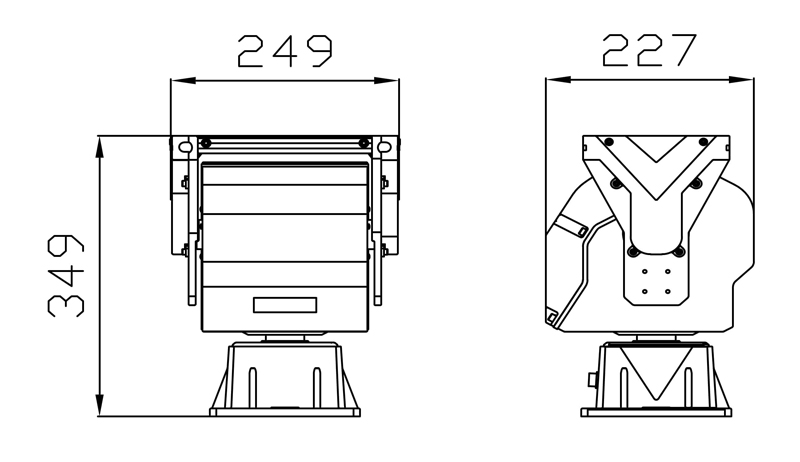

| Size | 227×249×349mm（L×W×H） |
| Weight | 13kg (28.66lb) |
