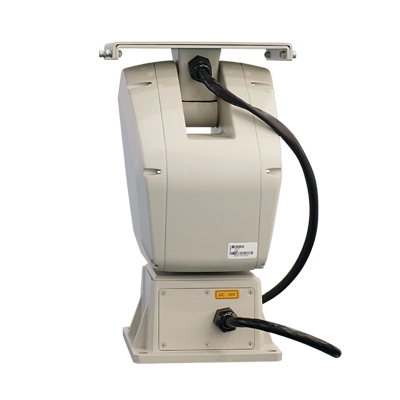

Small pan tilt unit, indoor/outdoor use
High-precision gear transmission, self-locking when power off
Load capacity up to 10kg/20.05lb
High-strength aluminum alloy construction
Variable speed,pan: 0.1~100°/s;tilt:0.1~40°/s
360° continuous pan rotation, 40°~-90° tilt
Preset accuracy:±0.1°
Support position feedback and absolute position
RS485/RS422 pan tilt control with Pelco P/D protocol
Protection grade IP66
| Model | ZN-SPL10U |
| Max. Load Capacity | 10kg/20.05lb |
| Load Type | Top load |
| Transmission Mode | Gear drive |
| Pan/Tilt Range | Pan: 0°~360°, Tilt: -90°~+40° |
| PanSpeed | 0.1°~100° |
| TiltSpeed | 0.1°~40° |
| Presets | 200 |
| Preset Accuracy | ±0.1° |
| PT Speed Adaptation | Support |
| Patrol Scan | Support |
| Guard Location | Support |
| Lens Preset | Support |
| Lens Control | Continuously adjustable zoom, focus speed |
| Power-Off Memory | Support, recover to PT position, scan/preset/cruising track movement before power failure |
| Protocol | Pelco D/P |
| Baud Rate | 2400/4800/9600/19200 bps |
| Communication Interface | RS485 or RS422 |
| Coordinate Feedback | Support angle query feedback/real-time feedback |
| Interface | |
| Standard | 10/100M Ethernet with RJ45 (4 wire, pass-through), AC 24V/DC 24V (2 wire), GND |
| Opention | RS485/RS422 and Analog Video |
| General | |
| Power Supply | AC24V±20% ,50/60Hz;DC24V±10%； |
| Power Consumption | ≤60W |
| Lighting Surge Protection | Power: 2000V (line to ground: 4000V, line to line: 2000V) Communication signal interface: 2000V (line to ground: 2000V, line to line: 1000V) |
| Ingress Protection | IP66 |
| Working Temperature | -40°C~+65°C (-40°F~ +149°F) |
| Working Humidity | ＜90%RH |
| Protection Level | IP66 |
| Material | Aluminium Alloy |

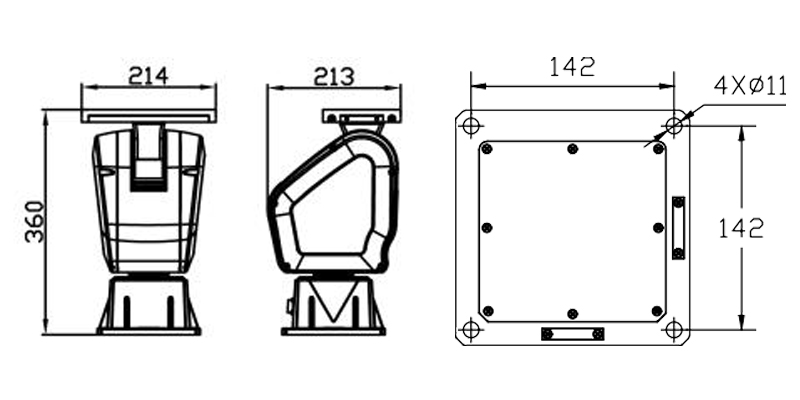

| Size | 214×213×360mm（L×W×H） |
| Weight | 12kg (26.45 lbs) |
